Acquisition Systems
- Sercel 428XL (telemetric) - 10,000 channels
- Sercel Unite (nodal) - 2,500 channels
- DTCC SmartSolo (nodal) - 11,500 channels
Energy Sources

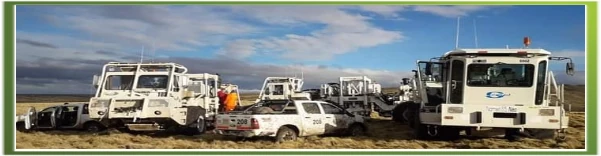

10 Sercel Nomad 65Neo vibrators (62,000 lbf), Sercel VE464 electronics
10 Mertz M26HD vibrators (62,000 lbf), Sercel VE464 electronics
Sercel Nomad 65Neo Vibrators (LF actuator):
| Peak Force: | 278 kN |
| Operating Frequency: | 1 - 250 Hz (5.4 - 150 Hz full drive) |
| Control Electronics: | Sercel VE464, integrated RTK system (Trimble RTX) |
| Navigation System: | VLI / Sercel Guidance |
Mertz M26HD Vibrators:
| Peak Force: | 275 kN |
| Operating Frequency: | 1 - 150 Hz (7 - 125 Hz full drive) |
| Control Electronics: | Sercel VE464, integrated RTK system (Trimble RTX) |
| Navigation System: | VLI / Sercel Guidance |

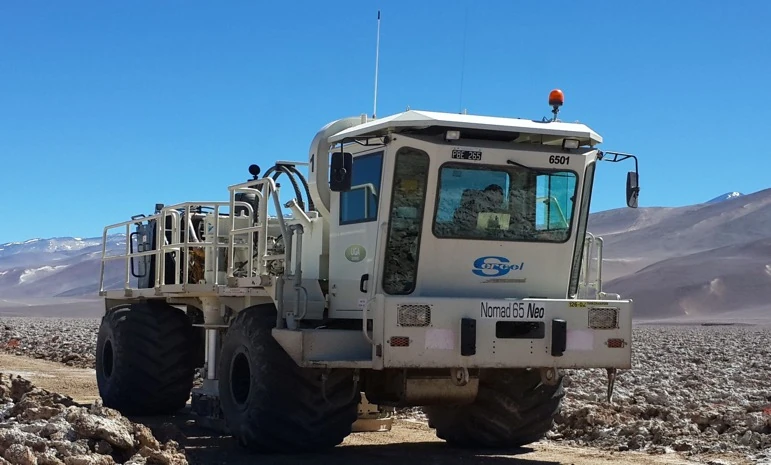

Sercel Nomad 65Neo

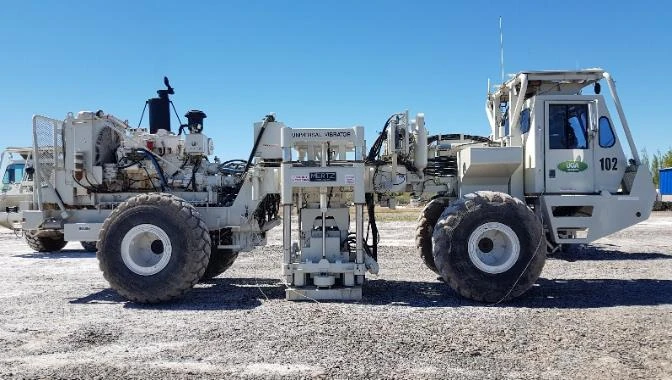

Mertz M26HD
Vibrator Control and QC System
Sercel VE464 vibrator control/QC system + Sercel 428XL central unit
Allows the use of high-productivity vibrator acquisition techniques such as Slip-sweep, HFVS, ISS, DSSS, among others
Allows the use of conventional and special sweeps (pseudo-random, coded, cascaded, and "custom" type)
Planning and Control
- OMNI 3D Seismic Survey Design
- MESA Seismic Survey Design - ION
Quality Control and Processing
- Vista Software Field QC by Gedco
- DTCC SmartSolo autonomous nodal acquisition system
Vibrator Control and QC System
- Software for generating "custom" sweeps, Sercel SweepCreator
- Allows generation of "low-dwell" or "maximum-displacement" type sweeps, taking into account the mechanical and hydraulic parameters and limits of the vibrator
- The generated sweep can be saved and loaded directly to the Sercel VE464 controllers
- Software for simulation and verification of sweeps against vibrator parameters and limits, Sercel CheckSweep
- Allows simulation of all types of sweeps (including "custom") and verification that they do not exceed the mechanical and hydraulic limits of the vibrator
Topography
- System: GNSS Trimble RTK (Real Time Kinematic) R10 series
- Technology: CenterPoint RTX, satellite RTK correction, allows measurements with centimetric precision without a base station
- Data Collectors: Trimble TSC3
- Software: GPSeismic / Trimble Business Center / Autodesk AutoCAD / QGIS / GlobalMappe
Vertical Travel Time and Refraction Recording

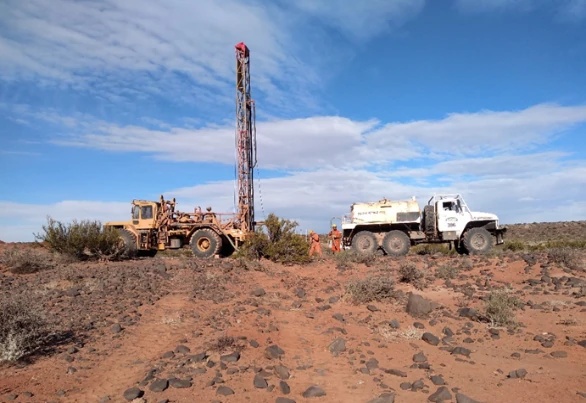

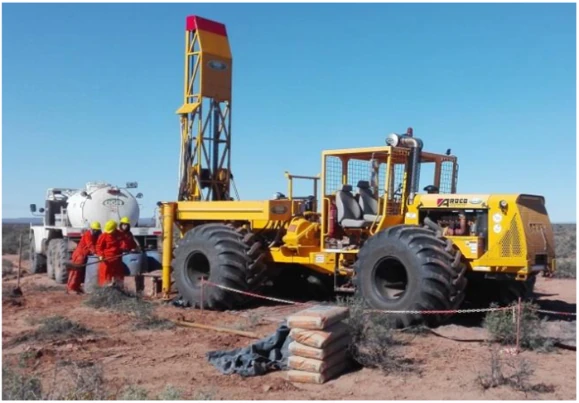

- IEMA R800 drill (Igarreta 4x4 carrier) & Ardco C1000 drill (Ardco 4x4 carrier)
- Seismic Source DAQLink III acquisition system (24 channels)
- Refraction spread 470 m, 24 channels (profile / counter-profile)
- AWD Energy Sources: PEG-40 (40 kg) and Bison EWG (250 kg)
- Interpretation Software: IXRefrax
Vehicles and Others
- Mercedes Benz 1720A and 1725 double-traction trucks
- Ford 4000 double-traction light trucks
- Toyota Hilux CS and CD double-traction pickup trucks
- Komatsu WA320 wheel loaders
- Komatsu D65EX dozer
Communications
- RF PPP and satellite links for voice and data
- VHF RF equipment for communication in operation area
